Building Site Combination 03
Order number L5.03000

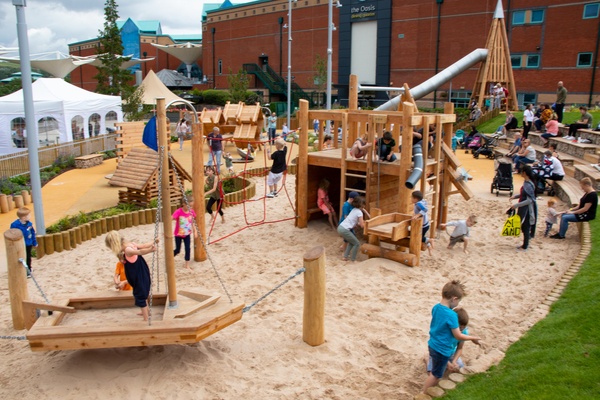

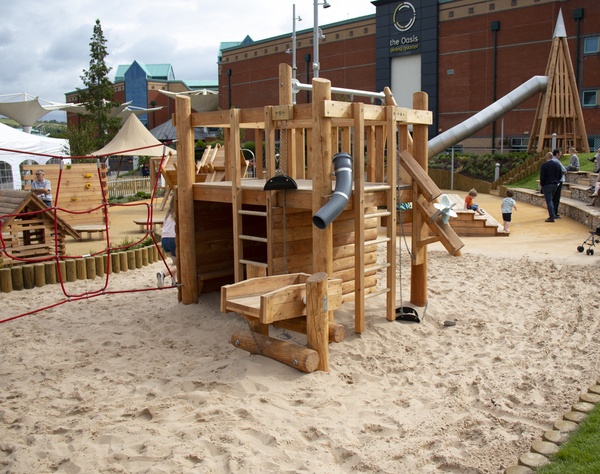

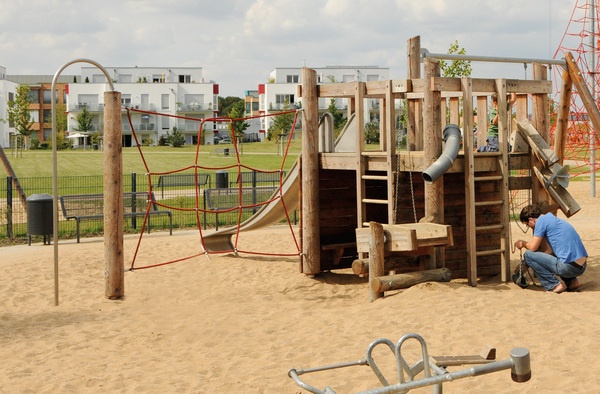

Our Building Site Combination 03 offers numerous opportunities for creative play and exercise. The platform can be reached via a climbing net and ladder, while the slide offers a swift getaway. The diverse “work” equipment, hut and the play area under the platform invite children to hide away and engage in different kinds of role-playing games. Working together on the building site is equally enjoyable for both big and small children.
- Kindergarten children
- School children
- Supervised play areas, such as kindergartens, schools, after-school programmes or similar
- Public play areas without supervision, such as playgrounds, parks or similar
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer
Richter Spielgeräte GmbHShare Building Site Combination 03
Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure
Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced
Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape
Claddings
Claddings made of mountain larch (4 – 5 cm). Peeled white by hand, natural tree surface remains tangible and perceptible
Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain
Hardwood rungs
Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled and mortised, secured against twisting, easy to grip and not cold for children to touch
One-piece construction
Total construction of the slide made of 2 mm stainless steel, drawn in box form, surface glass bead blasted, without welding seam between sliding surface and side cheek
Swing seat
Ergonomically shaped swing seat made of rubber with soft shock absorbing edge. Durable due to strong profiled steel insert
Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing
Aluminium rope pressing
Aluminium rope pressing, cylindrically pressed, with rounded ends
S-connectors
S-connectors Ø 8.1 mm, made of high-quality stainless steel, rounded
Swing joint
Drop-forged, hot-dip galvanised swing joint with sintered bush and integrated swivel
Rope connection fixed
Fixed rope connection without dangerous openings. Screw connection adjustable and countersunk in the wood
Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads
Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood
Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary
Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel
