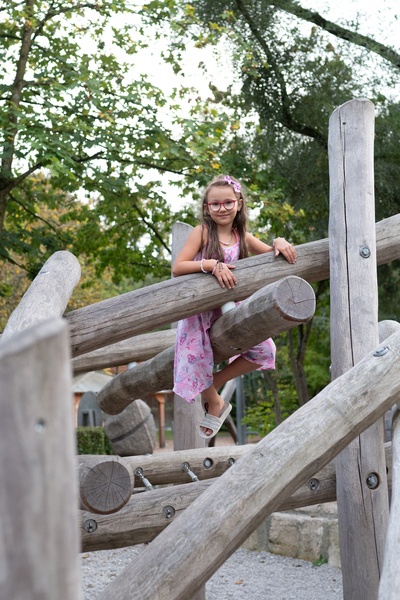

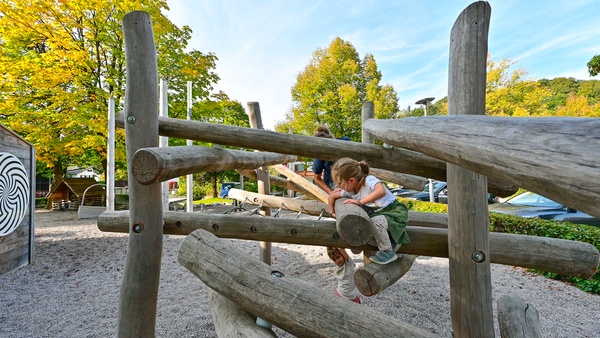

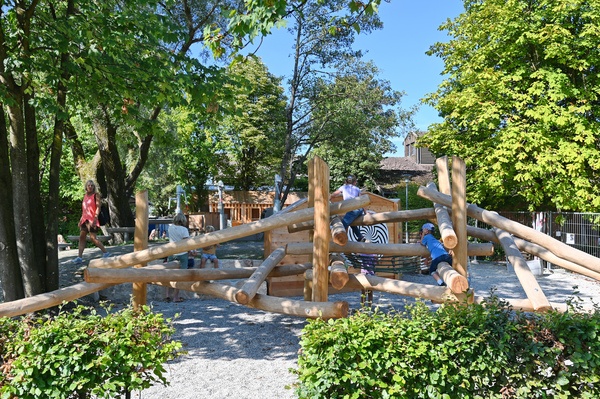

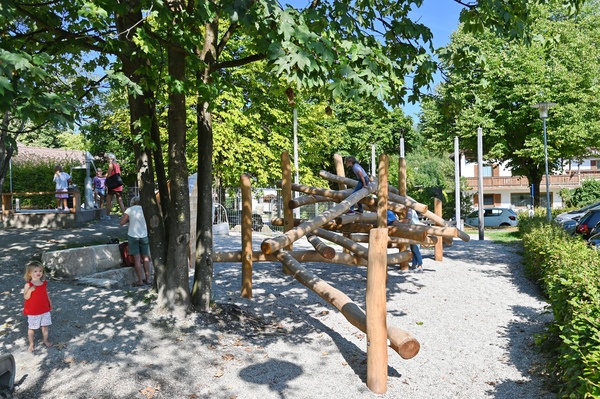

Climbing Structure 18
Order number 6.51018
- schoolchildren
- young people
- public play areas without supervision, such as playgrounds, parks or similar
- supervised play areas such as kindergartens, schools, after-school programmes or similar
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer

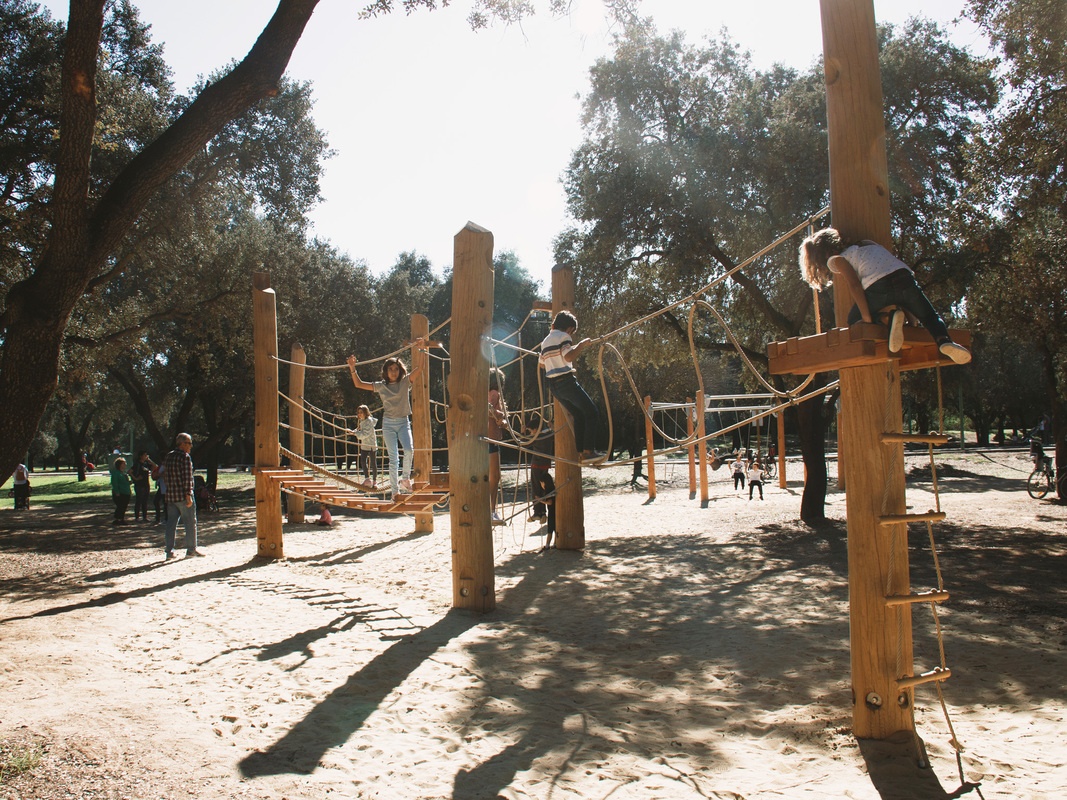

Richter Spielgeräte GmbHReference playgrounds
Share Climbing Structure 18
Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure
Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

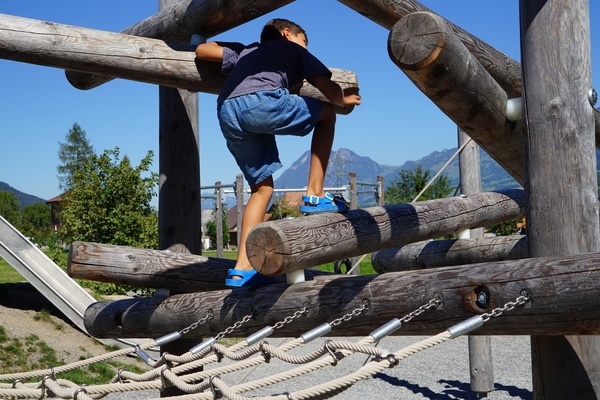

Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing
Aluminium rope pressing
Aluminium rope pressing, cylindrically pressed, with rounded ends
S-connectors
S-connectors Ø 8.1 mm, made of high-quality stainless steel, rounded
Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt
Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads
Distance fitting
Screw connection with distance fitting to avoid entrapment areas
