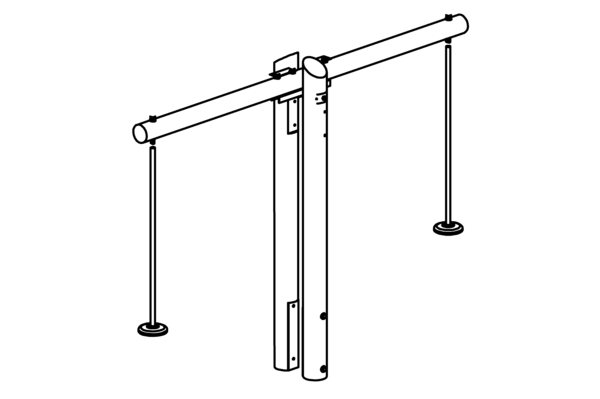

Scales, made of larch required space: 4.00 x 8.50 m
Order number L6.10000

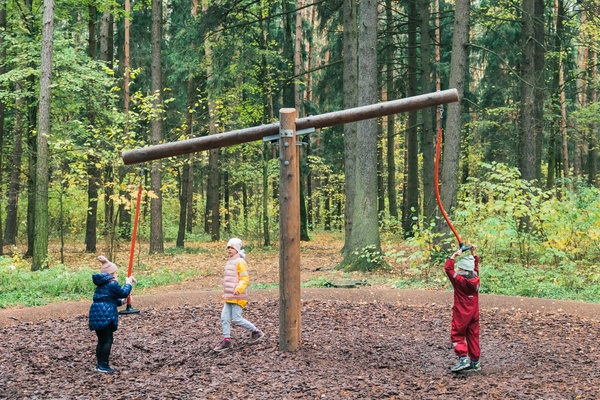

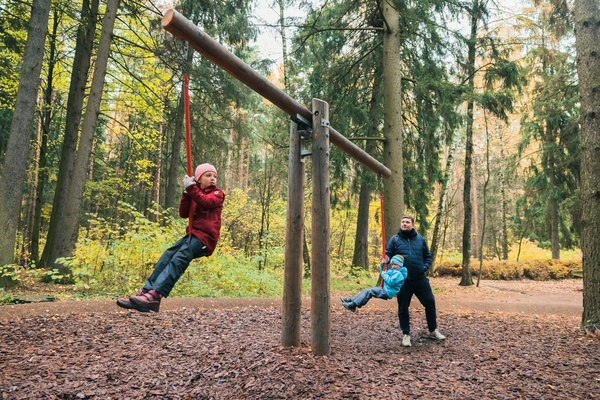

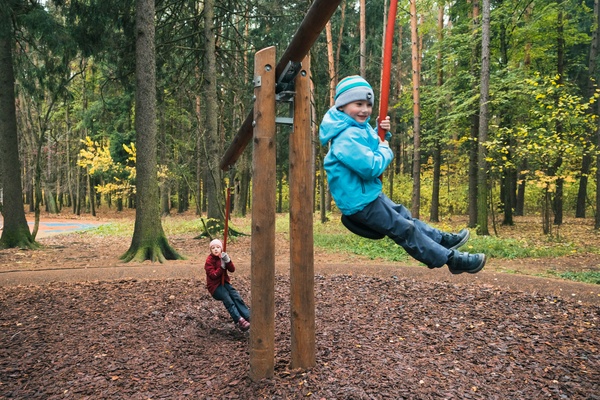

Effectively, the Scales are a raised see-saw with hanging seats. The up and down movement can be carried-out with a slight spring to it or with full force. At the same time, a hard bump is damped by means of a mechanical spring system. Sideways swinging and even swinging in small circles is possible while sitting on the long hanging pendulum seats. The Scales, and also the Cross Scales, encourage communication and cooperation.
- School children
- Supervised play areas such as schools, after-school programmes or similar
- Public play areas without supervision, such as playgrounds, parks or similar
- Swimming pools without supervision, such as outdoor pools, adventure pools or similar
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer
Richter Spielgeräte GmbHShare Scales, made of larch required space: 4.00 x 8.50 m
Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure
Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced
Pendulum seat
Pendulum seat with a large rubber surface. Soft, protective edge and steel insert
Universal joint
Drop-forged, hot-dip galvanised universal joint, consists of two sintered bushes, for free swinging in any direction
Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt
Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads
Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary
Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel
