Swing Rope Equipment with pendulum seats and tensioning
Order number 7.65500

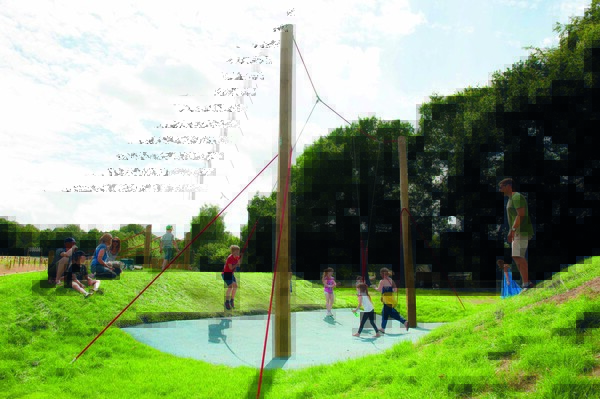

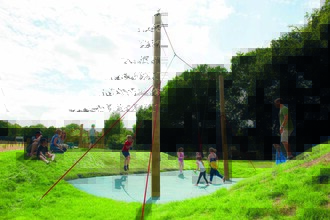

The Swing Rope Equipment consists of a steel cable spanned horizontally between two high posts. Attached to the cable are three ropes for swinging. Because of the way the apparatus is made, swinging movements on one rope affect swinging movements on an adjacent rope, thus paving the way for games of a competitive and co-operative nature and promotes communication and cooperation. The Swing Rope Equipment needs to be installed on particularly levelled ground. If this is not possible, we recommend the Partner Pendulum Order no. 7.67000.
- schoolchildren
- young people
- leisure parks
- swimming pools without supervision, such as outdoor pools, adventure pools or similar
- public play areas without supervision, such as playgrounds, parks or similar
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer
Richter Spielgeräte GmbHShare Swing Rope Equipment with pendulum seats and tensioning
Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure
Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced
Perforated
The earth / air zone of the wood is perforated by numerous small bore holes to ensure that the impregnating agent penetrates this particularly endangered zone

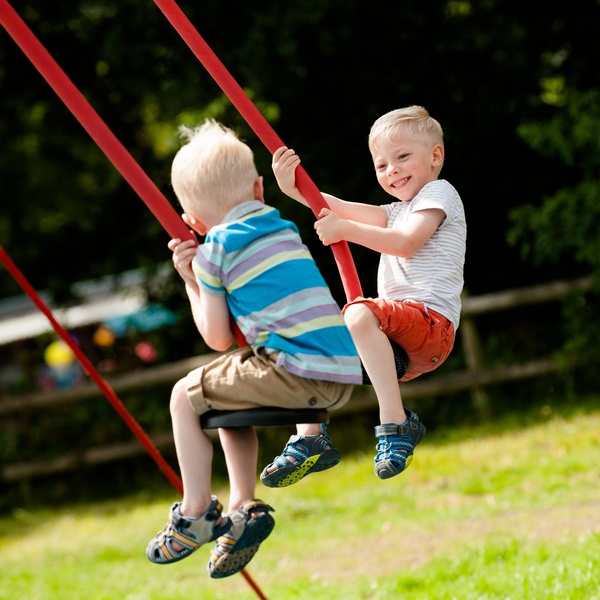

Pendulum seat
Pendulum seat with a large rubber surface. Soft, protective edge and steel insert
Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing
Aluminium rope pressing
Aluminium rope pressing, cylindrically pressed, with rounded ends
Universal joint
Drop-forged, hot-dip galvanised universal joint, consists of two sintered bushes, for free swinging in any direction
Rotating rope connection
Rotatable fitting without dangerous openings, with sintered bush with integrated swivel to ensure the rope untwists
Double rope connection
Connection for complicated swing and swivel motion
Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary
HPL ground anchor
Foundation anchor made of phenol resin paper-based laminates
