Tarzan Rope
Order number 7.64200

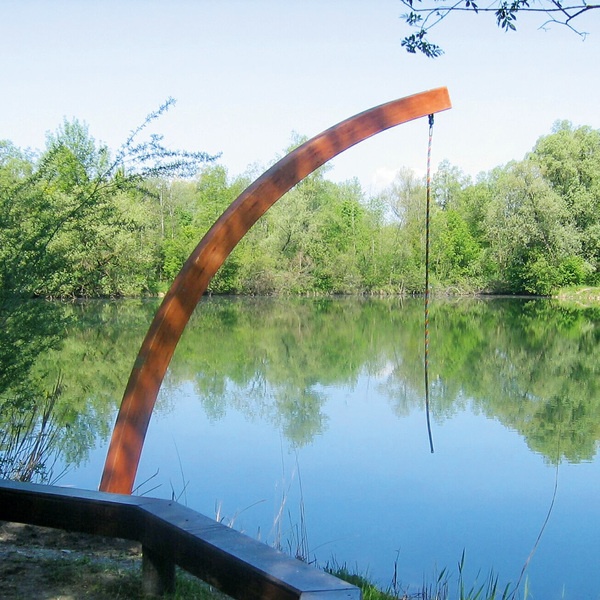

The Tarzan Rope is suspended from acurved, laminated beam.It is not always possible for children andteenagers to fulfill their natural need forexercise in their environment. Therefore,the activities offered by the TarzanRope, such as swinging back and forth,moving hand over hand and daringlyjumping off, are very popular activities.For reasons of security, this equipmentrequires special ground modelling. Ifthis is not possible, we recommend theversion with the pendulum seat.
- schoolchildren
- young people
- leisure parks
- swimming pools without supervision, such as outdoor pools, adventure pools or similar
- public play areas without supervision, such as playgrounds, parks or similar
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer
Richter Spielgeräte GmbHShare Tarzan Rope
Laminated wood beams
Laminated wood beams made of non-impregnated larch, glued according to EN 14080:2013; for very large timber cross-sections; comparatively low shrinkage, almost completely free of cracks
Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing
Aluminium rope pressing
Aluminium rope pressing, cylindrically pressed, with rounded ends
Universal joint
Drop-forged, hot-dip galvanised universal joint, consists of two sintered bushes, for free swinging in any direction
Rotating rope connection
Rotatable fitting without dangerous openings, with sintered bush with integrated swivel to ensure the rope untwists
Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt
Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary
