Wheelchair Swing incl. wooden construction, permitted only in supvervised areas
Order number L6.29110

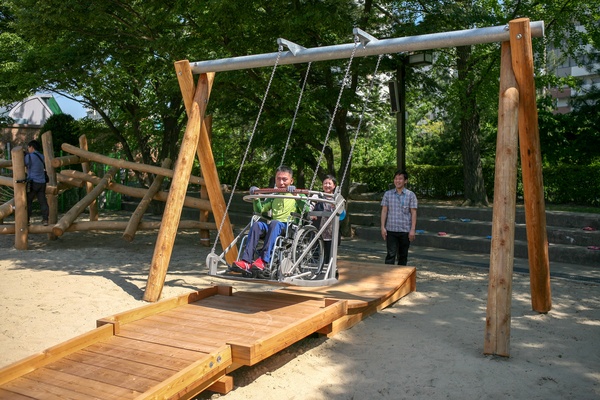

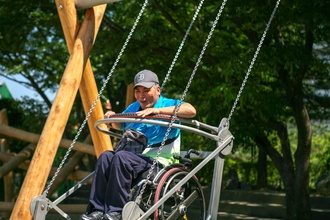

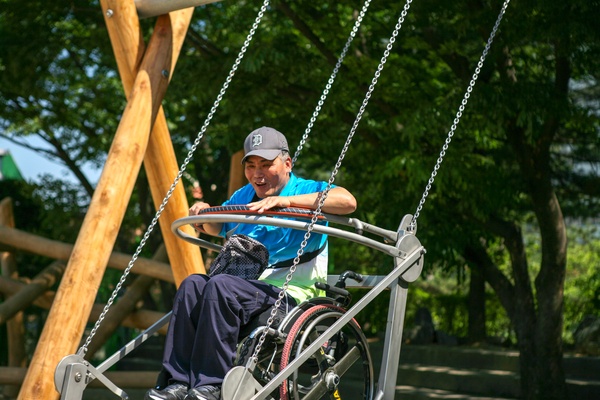

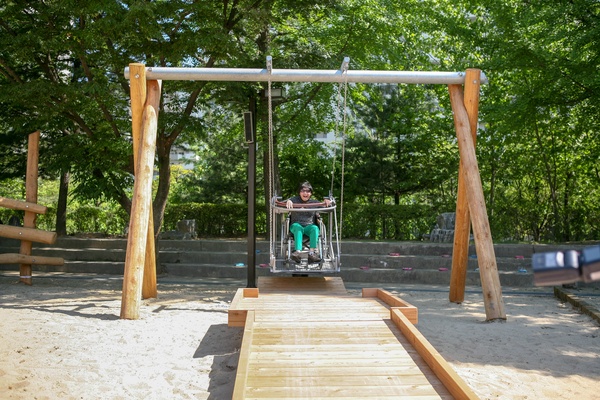

Swings are a basic element for every play world and are highly attractive to people. Rocking and swinging movements have a soothing effect; they release tension and give pleasure. Our Wheelchair Swing takes into account the special needs of those with restricted mobility yet is able to offer the opportunity to experience swinging. Ground-level access to the swing is possible via a ramp. After securely positioning the wheelchair in the gondola, the carer can exit via the rear through a lockable opening. A bar to fix the wheelchair in place as well one serving as a parking brake combined with level compensation guarantee an enjoyable swinging experience. The matching Wooden Structure, which is essential for using the equipment, consists of an access ramp, a turning area and a platform adjusted to the swinging radius.
- School children
- Young people
- Adults
- Older people
- Only suitable for supervised play areas
Info
Attention! Technical modifications reserved. Request current assembly instructions for site dimensions.Designer
Günter BeltzigShare Wheelchair Swing incl. wooden construction, permitted only in supvervised areas
Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced
Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape
Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain
Swing joint
Drop-forged, hot-dip galvanised swing joint with sintered bush and integrated swivel
Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt
Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads
Interlocking
Interlocking connection, with milled metal rings or serrated disc dowels, to reinforce the bolt connection under high loads transverse to the grain direction of the wood
Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary
Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel
